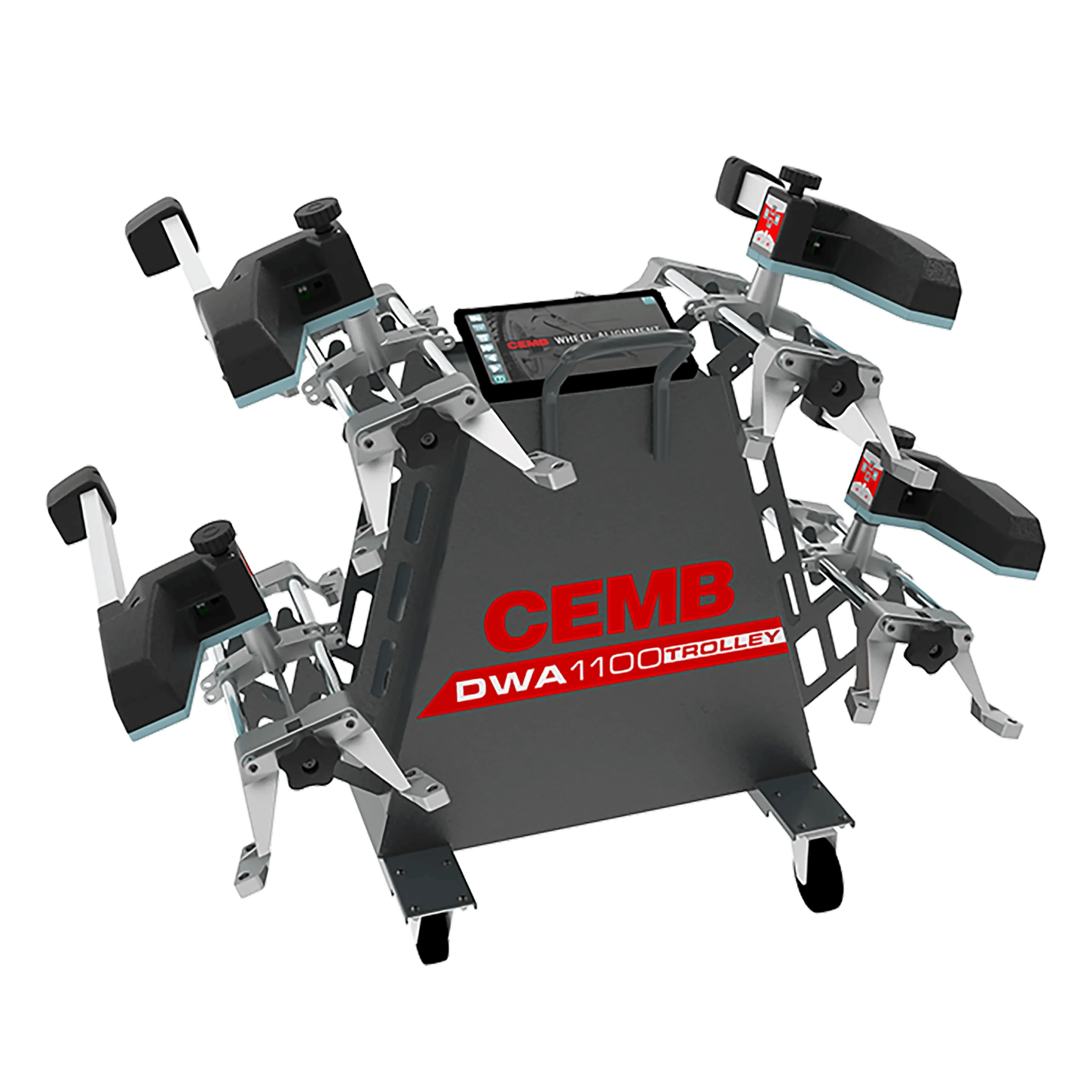

DWA1100Trolley
8-SENSOR CCD WHEEL ALIGNMENT SYSTEM
DWA1100 Trolley is a very interesting space-saving and highly mobile solution! Thanks to its mobile structure with pivoting wheels, it can be easily positioned near the vehicle, thereby optimizing the workshop space, eliminating the encumbrance of the PC, and allowing the operator to work comfortably even under the car.
Standard Features – Mouse over Icons for More Information
- The mobile structure with pivoting and rubber wheels of 100 mm (4 inch) diameter allows smooth movement on any type of flooring.
- The extremely compact cabinet is easily transportable, and the supports mounted on the cabinet hold targets and clamps and act as a recharge point for the CCDs and the toughpad.
- The software is managed by a toughpad with a 10” touch screen and an extremely robust, waterproof, and dust-proof structure with a rubberized cover breaking-proof; it supports the Windows 10 operating system and Wi-Fi connection, thus ensuring optimal ease of use even during operation under the vehicle.
- CCD sensors (only 5.7 lbs), lithium batteries, featuring long durability when batteries are charged. The batteries are immune to the “memory effect” and can be recharged at any time.
- The MEMS accelerometer (derived from the aeronautical field), provides the acquisition of the alignment parameters of wheels. It measures the sensor inclinations according to the two main axles (caster and camber).
- Refer to DWA1100 for detailed information on the aligner.
Additional Information
| Type | Field |
|---|---|
| Power Supply | 110V, 1ph |
| Wheel Clamps | 12" - 24.5" |
