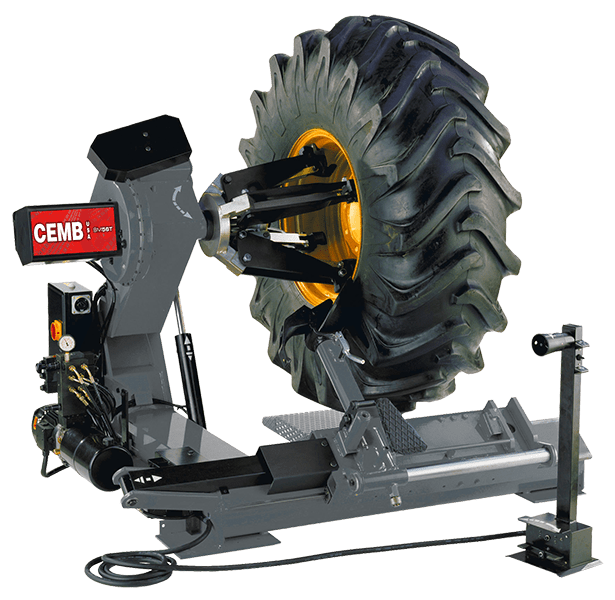

Heavy Duty Tire Changers for Off-Road Tractors - SM56T

SM56T

HEAVY DUTY OFF-ROAD TRACTOR TIRE CHANGER

A heavy-duty off-road tractor tire changer with wheel clamping range from 14”-46”, maximum tire diameter of 90” and maximum tire width 42”. Perfectly suited for tube and tubeless tires used on heavier off-road farm and commercial use tractors.

  • Self-centering wheel clamping from 14”-46” diameter and tire diameters to 90”.

  • Utilizes a self-centering four jaw clamping jaw drive system which doubles as a wheel lift.

  • All operation controlled from a portable control unit to gain access to multiple areas around the tire and wheel during service. Aids in tire bead lubrication, demounting and mounting.

  • Bi-directional rotation of the clamping system works with an adjustable bead loosening roller force of over 4100 LbF. (1860 KgF).

  • Operated with a simple to use hand-held control unit.

  • Heavy duty 220v, 3 ph. 50/60 Hz high torque motor.

  • Final assembly and tested in the USA.

Additional Information

TypeField
Power Supply220V, 3ph
Air Pressure0-1885 psi (0-130 bar)
Rim Diameter (Ext.)14" - 46"
Tire Diameter90.5" (2300 mm)
Max. Wheel Width42" (1067 mm)
Bead Breaker Force6000 lbs. (2721 Kg)
Shipping Weight: 2000 lbs (907 Kg)

SM56T Layout
