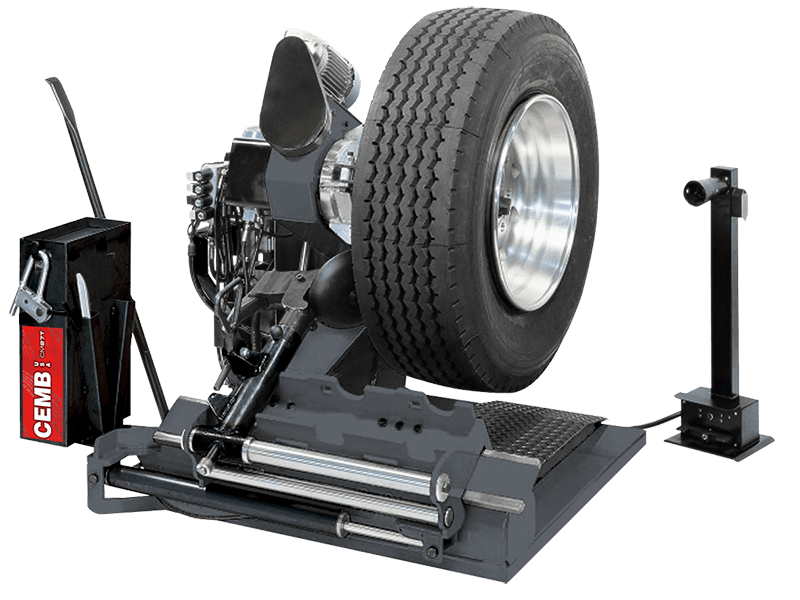

CM27T

HEAVY DUTY TRUCK & BUS TIRE CHANGER

The CM27T is perfectly suited for tube and tubeless type tires used on over-the-road Class 8 commercial trucks and some off-road tractor tires and rims. The pivoting four-jaw clamping chuck aids as a wheel lift. Prevents liabilities of manual truck tire changing by allowing the machine to perform all the heavy lifting and service work.

Self-centering wheel clamping from 13”-27” diameter and tire diameters to 63”. Nominal HD truck wheel service ranges from 15” to 24.5” rims.
All operation controlled from a portable control unit to gain access to multiple areas around the tire and wheel during service. Aids in tire bead lubrication, demounting and mounting.
Bi-directional rotation of the clamping system works with an adjustable bead loosening roller force of over 4100 LbF. (1860 KgF).
Heavy duty 220v, 1 ph. 50/60 Hz high torque motor.
Final assembly and tested in the USA.

Additional Information

Technical

Type	Field
Power Supply	220V, 1ph
Air Pressure	0-1885 psi (0-130 bar)
Rim Diameter (Ext.)	13" - 27"
Tire Diameter	63" (1600 mm)
Max. Wheel Width	30" (780 mm)
Bead Breaker Force	4100 lbs. (1860 Kg)
Shipping Weight:	1415 lbs (640 Kg)
