SM628BPS
SM628BPS Advanced Swing Arm Tire Changer with Bead Press System
Professional-grade swing arm tire changers designed for OEM, oversized, and custom wheel applications. Offers an optional high-performance Bead Press System (BPS).
The CEMB SM628BPS is an advanced tire changing machine designed for shops demanding versatility and power. Featuring the essential Bead Press System (BPS), this heavy-duty tire changer makes quick work of even the most challenging low-profile tires and run-flats that other tire machines struggle to handle properly.
Standard Features – Mouse over Icons for More Information
SM628BPS Tire Changer Specifications
When choosing the best tire machine for your shop, consider these performance specifications:
SM628BPS, thanks to the professional-grade swing arm, is perfect for OEM, oversized tires, and custom wheels. The complete version features a high-performance Bead Press System (BPS), which is highly recommended for efficiently servicing low-profile, run-flat, on/off-road tires and commercial light trucks with stiff sidewalls and difficult rims with deep drop centers.
- Suitable for tall and wide tires
- Vertical post equipped with conic buses and play recovery systems which allow eliminating post flexure.
- Self-centering clamping jaws with high-quality dual air cylinders; uniform clamping pressures and high clamping force reduce the possibilities of rim slippage.

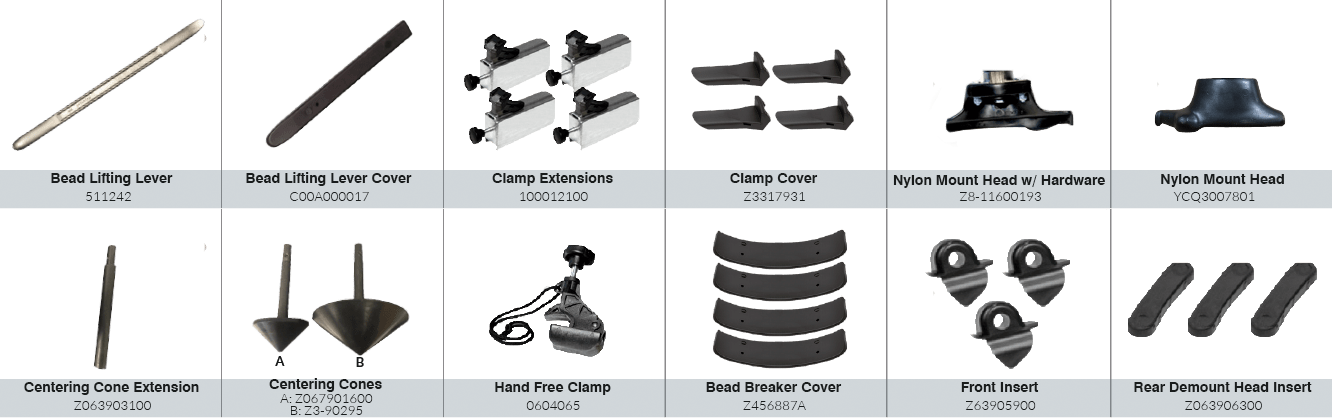

- Standard quick-change mount head kit provides steel and polymer long-wearing mounting heads
Additional Information
| Type | Field |
|---|---|
| Power Supply | 220V, 1ph |
| Air Pressure | 145 psi |
| Internal Clamping Capacity | 14"-27" |
| External Clamping Capacity | 11"-24" |
| Max. Wheel Diameter | 44" (1117 mm) |
| Max. Wheel Width | 15.5" (394 mm) |
| Turn Table Speed | 7,5-18 rpm |
| Machine Weight | 573 lbs. (260 kg) |
